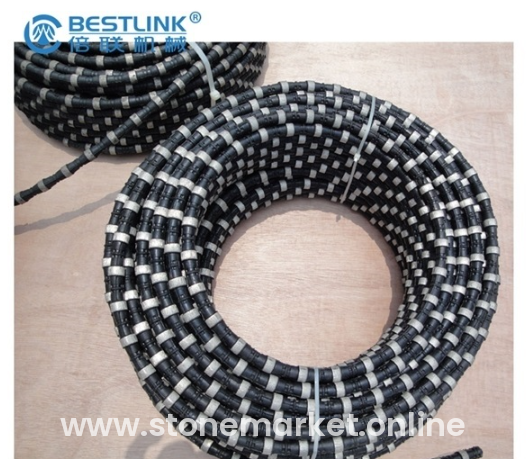

Rubberized Sintered Beads Diamond Wire for Granite Marble
The spring coating diamond rope saw are mainly used for soft stone material in stone quarry, such as marble, limestone, travertine etc.

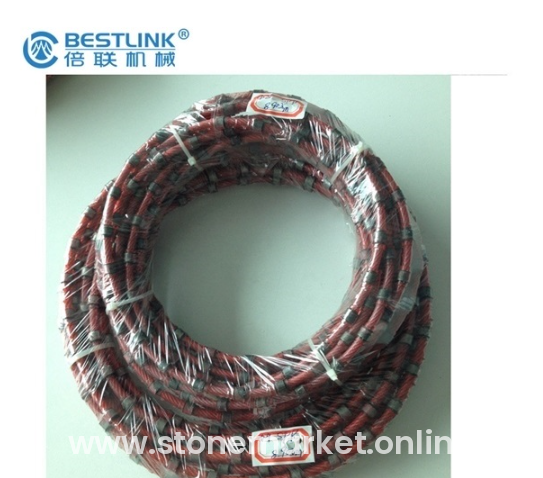

The plastic coating diamond rope saw are mainly used for all kinds of stone block squaring, trimming, profiling in static machinery at factory.
Wire for granite quarry
|
Diameter
(mm)
|
Model No.
|
Fixing Type
|
Beads/m
|
Material Type
|
Sawing speed
(m2/h)
|
Lifetime
(m2/m)
|
Line speed
(m/s)
|
|
D=11.4
|
GQR11.4A
|
Rubber
|
40
|
Class1
|
4-6
|
15-25
|
25-30
|
|
GQR11.4B
|
Rubber
|
40
|
Class3-4
|
2-5
|
8-15
|
22-26
|
|
GQR11.4C
|
Rubber
|
40
|
Class4-5
|
1-2.5
|
4-9
|
18-23
|
Wire for marble quarry
Diamond wire used for marble quarry which can vastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.
|
Diameter
(mm)
|
Model No.
|
Fixing Type
|
Beads/m
|
Material type
|
Sawing speed
(m2/h)
|
Lifetime
(m2/m)
|
Linear speed
(m/s)
|
remark
|
|
D=11
|
MQS11A
MQR11A
|
Spring
Rubber
|
28/30/32
32
|
Class A
Macro-crystalline
Soft Marble
& Travertine
|
10-20
|
30-55
|
35-40
|
Sintered
|
|
MQS11B
MQR11B
|
Spring
Rubber
|
28/30/32
32
|
Class B
Half-hardy Marble
|
8-16
|
15-35
|
33-38
|
Sintered
|
|
MQS11C
MQR11C
|
Spring
Rubber
|
28/30/32
32
|
Class C-D
Hard Marble
|
5-8
|
10-25
|
30-35
|
Sintered
|
|
D=11
|
DMQS
|
Spring
|
28/30/32
32
|
A---D
|
15-25
|
10-30
|
30-35
|
Sintered
|
Granite squaring
Wire for squaring and cutting
1.The wire allows significantly greater sawing heights than large discs.
2.Thinner cutting width, and more precise.
3.By virtue of its reliability, adjust the cutting techniques according to different stone material.
4.Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques.
Squaring and cutting of granite
|
Diameter (mm)
|
Model No.
|
Fixing Type
|
Beads/m
|
Material type
|
Sawing speed (mm/min)
|
Lifetime (m2/m)
|
Linear speed (m/s)
|
|
D=11
|
GCP11
|
Plastic
|
37
|
Class 1-2
Class 3-4
Class 5
|
10-15
5-10
3-6
|
12-20
8-13
4-8
|
26-30
24-28
20-24
|
|
GCR11
|
Rubber
|
40
|
|
D=10.5
|
GCP10.5
|
Plastic
|
37
|
|
GCR10.5
|
Rubber
|
40
|
|
D=10
|
GCP10
|
Plastic
|
37
|
Wire for Marble profiling cutting
|
Diameter
(mm)
|
Model No.
|
Fixing Type
|
Beads/m
|
Material Type
|
Sawing speed
(m2/h)
|
Lifetime
(m2/h)
|
Line speed
(m/s)
|
|
D=8.8
|
MPP8.8
|
Plastic
|
32
|
Class A
Class B
Class C-D
|
20-35
15-25
10-20
|
30-50
25-40
20-30
|
30-40
28-35
28-30
|
|
D=8.2
|
MPP8.2
|
Multi-wire for slab cutting
MDW (multi diamond wire) sawing of hard stone such as granite, an alternative to the traditional granite gang saw is a relatively new concept which is still being developed.
MDW machine is fast cutting speed; easy operation and high flexibility;
Low maintenance costs;
Small installation area, simple and inexpensive machine foundations.
|
Diameter
(mm)
|
Code.
|
Fixing
|
Beads/m
|
Material Type
|
Sawing speed
(m2/h)
|
Lifetime
(m2/h)
|
Line speed
(m/s)
|
|
D=8.8
|
GMP8.8
|
Plastic
|
37
|
Mixed granite
|
5-8
|
8-12
|
22-24
|
|
D=8.2
|
GMP8.2
|
|
D=7.2
|
GMP7.2
|
Wire for concrete cutting
This technique is widely used in construction cutting, bridge and under-water construction cutting. The advantages are:
1,Huge and irregular construction cutting.
2,Apply to cutting of Any direction and part.
3,High performance, safety and no pollution.
4,Able to control the cutting process by remote-controlled operation.
|
Usage
|
Model No.
|
Diameter
|
Beads/Meter
|
Fixing Type
|
|
General reinforcement
concrete cutting
|
BL-CCR10.5S
BL-CCR11S
|
D=10.5/D=11
|
40
|
Rubber+Spring
|
|
High reinforcement
concrete cutting
|
BL-CCR10.5S
BL-CCR11S
|
D=10.5/D=11
|
40
|
Rubber+Spring
|
|
Fast cutting
|
BL-CCR10.5F
BL-CCR11F
|
D=10.5/D=11
|
40
|
Rubber+Spring
|
