Quartz tile press machine production line - artificial quartz stone production line

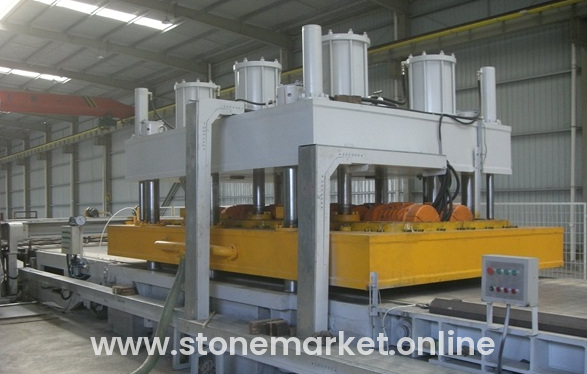

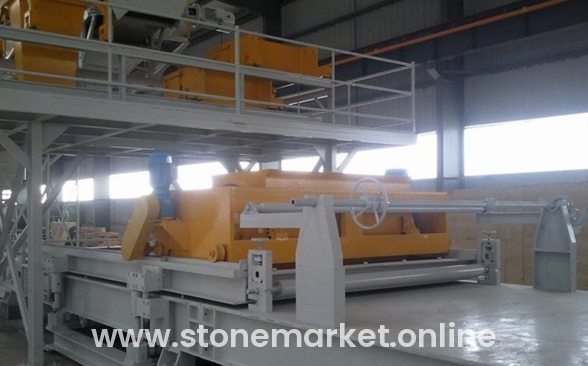

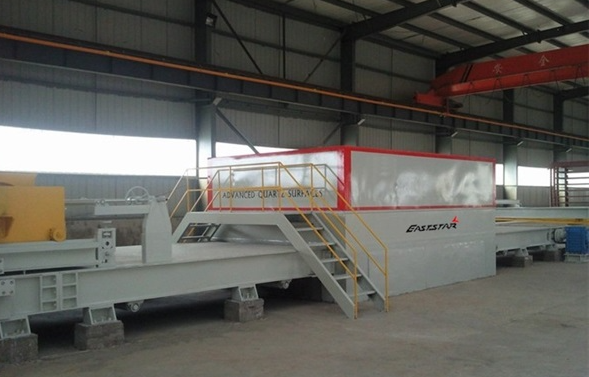

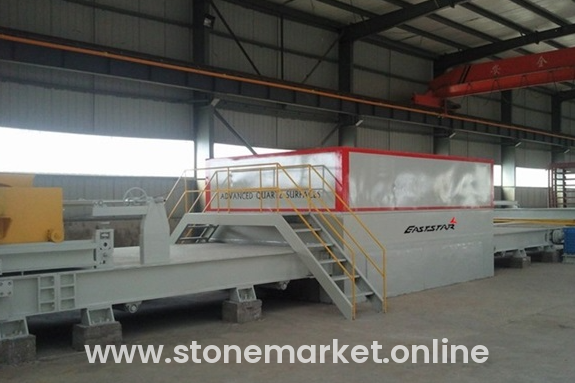

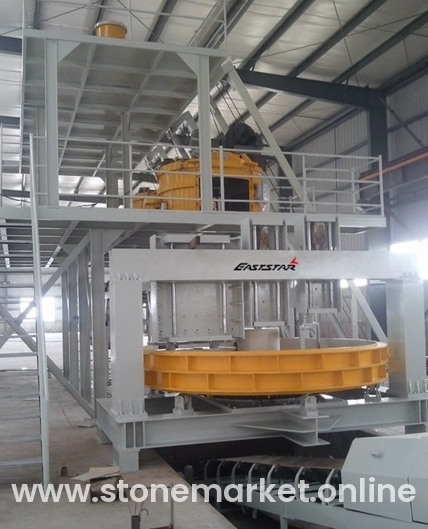

Overview Components Machinery Function Features Eaststar artificial quartz stone production line is mainly composed of hopper, conveyor, batching system, mixing system, crusher machine, material distribution machine, press machine, solidifying oven, test machine, etc. The test machine is the prototype of the core parts of the whole plant, with which the recipe can be tested by forming artificial quartz stone slab samples, volume production will only be made after successful tests. The process of the entire line is, weight raw materials (quartz powder, sand, etc) by hopper → send them to the mixer by conveyor → add auxiliary material (resin, firming agent, coupling agent, etc), mono-color mixing and then mixing all together → distribute mixed material in the distribution machine → and then put it into press machine → vibrate and press in vacuum for shaping → solidify in solidifying oven → cooling → rough slab→cross cutting→ width cutting→ calibrating for A side→ turning slab over→ calibrating for B side→further polishing line→final slab. Technical Data Parameters Unit ES-3250 Minimum air pressure bar 4532 Production capacity piece/hour 453 Max. slab width mm 413573 Vibration motor power kw 100 Machine overall height mm 45645 Max. slab length mm 465785 Pressing cycle minute/piece 453 Machine overall width mm 455+6 Vibration in minute nr 100 Approx. Weight Kg 4564 Sound pressure level dB 4654 Max. loading Kg 100 Total power kw 453 Max. Production m2/h 45634 Max. slab thickness mm 1 Machine overall length mm 456 Pressure T 100 Compressed air NL/min 25 Min. slab thickness mm 012.
