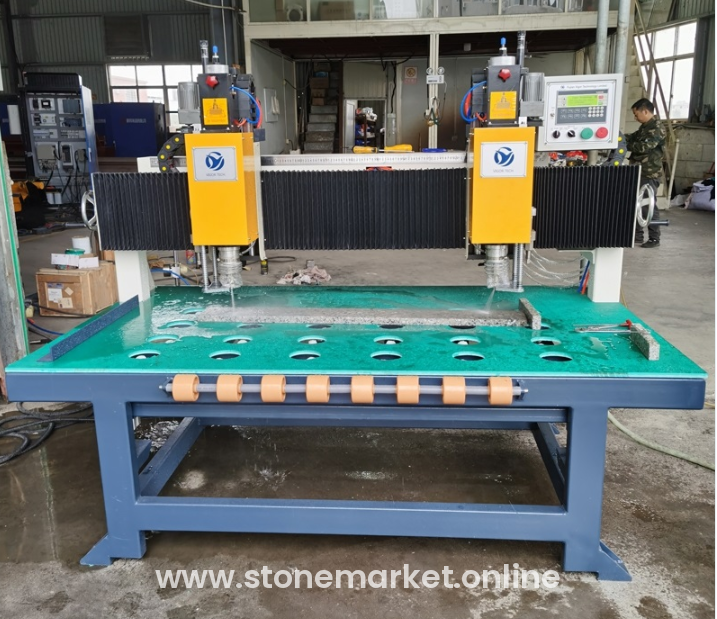

Automatic Drilling Machine For Undercut Anchor Of Ventilated Facades

Machinery Function Features Automatic Drilling Machine For Undercut Anchor of Ventilated Facades Equipment Introduction：This drilling machine can drill in different stone panels, concrete panels,ceramic panels,and other cladding panels. Such as granite, marble, travertine, sand stone, crystal glass, quarz, ceramic,etc, for back bolt application. Equipment features： ·Easy to operate ·Single die ·Automatic drill Equipment configurations： ·Stainless steel frame, assembled with aqua storage tank and desk universal roller ·Electric control system ·Stone positioning system ·Plates can be adjusted in both X, Y directions ·Automatic drill technique of water cooling diamond ·Clear plate surface with water spraying·Checking tool of pore forming Technical characteristics：Automatic air supply system, Automatic circulating water system, Drilling positioning system, Drill compensation regulation system. Equipment parameters： 1.Voltage: 380v. 2.Motor power: 2.2KW . 3.Air pressure: 0.6 Mpa. 4.Water pressure: 0.15 Mpa. Specification: 1900*1650*1550mm. Drilling parameters： 1.Max hole depth:40mm. 2.Min spacing: 150mm. 3.Max plate width: 1200mm. 4.Max plate length: 1800mm. 5.Min plate thickness: 12mm. Precision of drilling position：about 1mm.
