Anchor Hole Machine For Undercut Bolt In Stone Cladding System

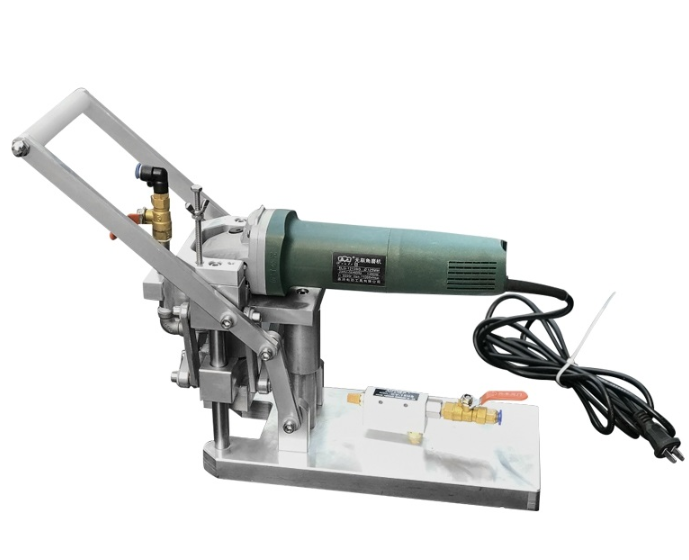

Machinery Function Features Handheld Drill Machine to drill Anchor Hole for undercut anchors in stone cladding system Main application: This machine is suitable for drilling holes for undercut anchors on marble, granite, ceramic board, honeycomb board, high-density cement board, and various man-made fiber boards. All dry hanging undercut anchor holes processing. This equipment has reasonable structure design, small size, light weight, quick and light operation, adopts one-way 220V voltage, low power consumption, energy saving and environmental protection, and has two operation modes: fixed and mobile. It is especially suitable for the needs of small and medium-sized curtain wall back bolts and project finishing. Equipment Technical Parameters: Maximum package size: 550*350*250 (mm) Maximum vertical size: unlimited Aperture: M7.2, M9, M11, M13 Undercut anchor hole drilling depth: 5-20mm (if the drilling depth is greater than 20, an extended drill bit needs to be customized) Voltage: AC 220V Rotating speed: 11000r/min (using the domestic first brushless angle grinder without carbon brush replacement for life) Machine power: 1350W Air pressure: power of the connected air pump is 2KW or above Water pressure: power of the self-priming pump is 550W or 750W, and the head is more than 30 meters Machine weight: 10KG
